Cqb-F Fluorine Lining Magnetic Pump Acid Corrosive Resistant Pump For Chemical
Magnetic Pumps Summary:
The CQB-F type heavy (high temperature) magnetic drive pump (magnetic pump for short), usually by the motor, magnetic coupling and corrosion resistant centrifugal pumps composed. Its main feature is the use of a magnetic coupling to transfer power completely leak through the ask gap and spacer sleeves when outside the magnet rotary motor driven by magnetic coupling, the magnetic field lines, the role of the inner magnet synchronous rotation, the pump rotor motor without mechanical contact to transmit torque. In the power input end of the shaft, since the liquid is enclosed in the stationary isolation kit, no dynamic seal is thus completely without leakage. The CQB Series magnetic pump, magnetic pump joint design team developed a new type of leak Naifushibeng, quite the level of the late eighties of its technical and economic indicators with similar foreign products. The CQB Series Magnetic Pump Types and basic parameters in line with the JB / T 7742-1995 "small magnetic drive centrifugal pump types and basic parameters" standards and small magnetic drive centrifugal pump three standard supplementary regulations.
Magnetic Pumps Features:
The CQB-F heavy duty magnetic drive pump flow is partly made of stainless steel has good corrosion resistance, organic acids, organic compounds, alkali, neutral solution and gases, the double helix bad carbon graphite bearing and carbide bushings mill, has a strong resistance to wear, to ensure that the life of the product, is the ideal pump leak-free transport of corrosive media.
Chemical Centrifugal Pump Model significance:
Examples: CQB50-40-160F
CQ ------- magnetic drive pump
B ------- current component materials for metal
50 ------- suction port diameter (mm)
40 ------- row outlet diameter (mm)
160 ------- impeller nominal diameter (mm)
F-----------FEP lined
Product Details:
| Model No. |
Caliber |
Capacity (m 3 /h) |
Head (m) |
Power (kW) |
|
| Voltage |
| Inlet(mm) |
Outlet(mm) |
(V) |
| CQB15-10-85F |
15 |
10 |
1.8 |
8 |
0.12 |
220/380 |
| CQB20-15-105F |
20 |
15 |
3 |
12 |
0.37 |
220/380 |
| CQB32-25-125F |
32 |
25 |
3.2 |
20 |
0.75 |
380 |
| CQB32-25-145F |
32 |
25 |
3.2 |
25 |
0.75 |
380 |
| CQB40-32-115F |
40 |
32 |
6.3 |
15 |
0.75 |
380 |
| CQB40-32-145F |
40 |
32 |
6.3 |
25 |
1.5 |
380 |
| CQB40-32-160F |
40 |
32 |
6.3 |
32 |
2.2 |
380 |
| CQB50-40-125F |
50 |
40 |
12.5 |
20 |
2.2 |
380 |
| CQB50-40-160F |
50 |
40 |
12.5 |
32 |
3 |
380 |
| CQB65-50-125F |
65 |
50 |
25 |
20 |
3 |
380 |
| CQB65-50-160F |
65 |
50 |
25 |
32 |
5.5 |
380 |
| CQB80-65-125F |
80 |
65 |
50 |
20 |
7.5 |
380 |
| CQB80-65-160F |
80 |
65 |
50 |
32 |
11 |
380 |
| CQB100-80-125F |
100 |
80 |
100 |
20 |
11 |
380 |
| CQB100-80-160F |
100 |
80 |
100 |
32 |
18.5 |
380 |
Why choose Gempump:
We are a professional magnetic coupling pump manufacturers in China. We can provide the best magnetic coupling pump for sales and competitive price. If you are looking for magnetic coupling pump supplier, we are a good choice. Contact us to get the price of sealless magnetic coupling pump, magnetic coupling chemical pump, etc..
Magnetic Pump Application:
Pump flow components adopt stainless steel (304, 316L) materal, it is widely used in petroleum, chemical, pharmaceutical, electroplating, environmental protection, water treatment, national defense, and other departments to transport inflammable, explosive, toxic and precious liquids, is the best choice for non-leakage, no pollution working environment.
Product Tags:
|
|

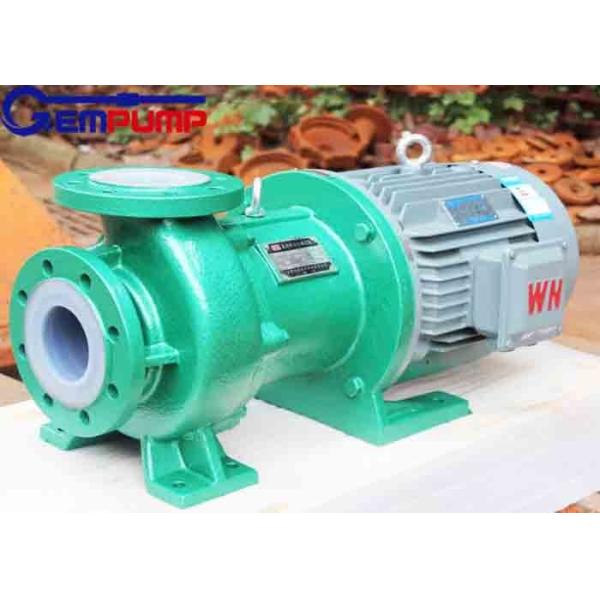

CQB-F Fluorine Lining Magnetic Centrifugal Pump 100M3/H Acid Resistant Pump Images
|
